Stackers/Destackers

Bachhuber Automation engineers Stackers and Destackers to meet your application. Flexibility to provide ease of changeover between different size and shaped parts is designed into the system. Manipulator designs include pneumatic suction or electromagnet part pick up.

Our complete in-house CNC machine shop allows us to control scheduling from design through component manufacturing to final assembly and test.

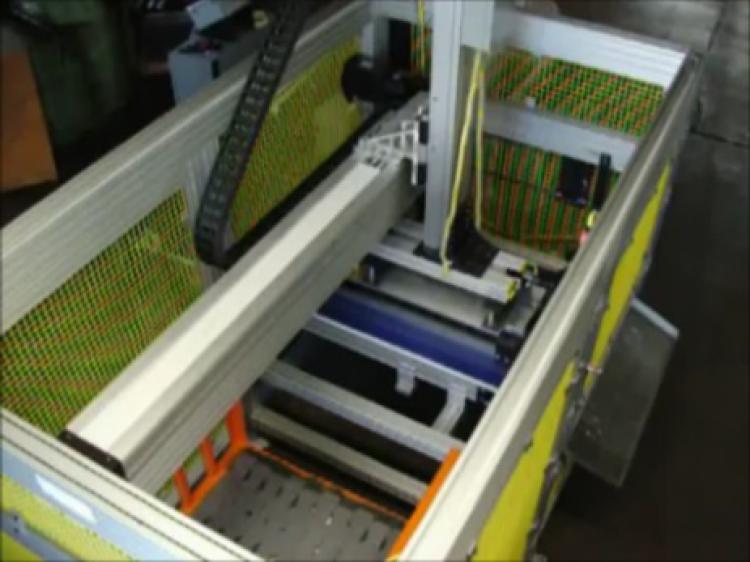

Model 1200 Stacker with Accumulating Conveyor

Model 1200 Stacker with Accumulating Conveyor

Parts collect on an accumulating conveyor. When the desired part count is reached., the part stack weighing up to 75 lbs. is picked up with electromagnets and stacked in a cart. The system is designed to handle over (200) part numbers ranging in length from 10” to 37” and from 0.120” to 0.312” thick.

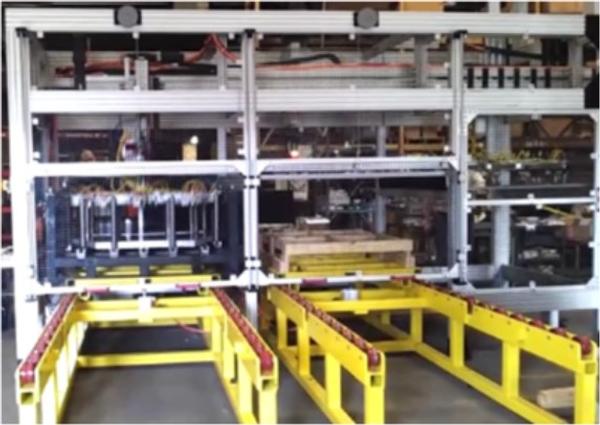

Destacker and Feeder

Destacker and Feeder

Using dual gantries on opposing rails, the parts are picked up from the incoming stacks as shipped. The first gantry sets the part in an aligning station. The second gantry moves the part from the aligning station to the press loading station.

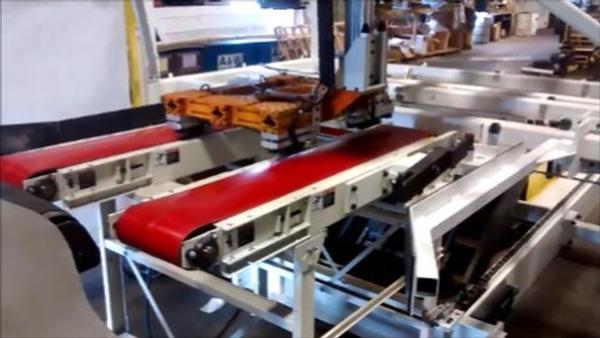

Model 1401 Stacker

Model 1401 Stacker

The Model 1401 Stacker picks up irregularly shaped right and left hand parts from the exit conveyor coming out of the press. Parts weigh up to 89 pounds each and are produced in a two out die at 20 strokes per minute. The weight of the parts being stacked exceeds 200,000 pounds per hour.

The system is designed to provide simple and quick changeover for a family of parts
